Using images in Messages templates

In this Article


Images can greatly enhance the content of a message, and there are three ways to add them to your template: in the Content area, in the Row background, and dynamic content pulled in from the Posts module.

Using images in the Content area

Drag and drop an image content element into the structure of your message. Drag an image file onto the image element, or click Browse to pull up Resources and select or upload an image.

When you have an image selected, click on it to bring up the content properties in the right-hand menu.

  • Change image allows you to select a different image from Resources.
  • URL shows the file path of the current image. You can also copy and paste in the URL of an image stored elsewhere.
  • The Adjust to width toggle will determine whether the image adjusts responsively to the width of the content area.

Important Note

If the image width is already greater than the width of the content area, this toggle will be automatically enabled.

  • Alternate text is required for ADA compliance. Enter a brief description of the image for users who may be using screen readers or otherwise cannot view it.
  • The Action menu gives you options to open a web page, send an email, make a phone call, or send an SMS text message. The fields below adjust depending on what’s selected in the dropdown.
  • Spacing allows you to adjust the padding, or empty space, around the image. Enable the More options toggle to set different spacing on each side.

Using images in the Row background

The background image tool lets you set an image as the background for an entire row. Select a row in the template editor, and use the Row background image toggle to add an image behind the elements in that row. After selecting an image to serve as the row background, you can change the image, edit the image, or paste in a URL for an image stored outside Resources.

There are three checkbox options for how the background image should be applied/positioned:

  • Full width applies the background image to the ENTIRE row when selected. When not selected, the image will only be displayed within the CONTENT AREA on that row (the content area's width is set in the Body > Property pane).
  • When the Center option is selected, the image will be centered. If this option AND the Repeat option are both enabled, the image will be centered in the content area and repeated to the left and right.
  • With Repeat selected, the image will display multiple times (tiled) until both the horizontal and vertical area of the row or content area is completely filled. This works best with symmetrical background image patterns. Using Repeat along with the Full Width option will mean that the image is tiled all the way across the entire row. If the row is taller than the image, the image will be tiled both horizontally and vertically.

Important Note

The background image feature is known to not work with the following email clients.

Outlook 2016 on MAC OS X 10.10
Lotus Notes 7
Xfinity / Comcast web email client

If the background image cannot be displayed by an email client, it will display the row background color instead. Make sure you also set the background color on the row when you set a row background image, so that recipients using the email clients listed above still see a good-looking email.

Pulling in Posts thumbnails as Dynamic content

The third way to add images to a message is to select “Thumbnail Image” in the Dynamic Configuration you intend to use with your message. This will automatically pull in the image associated with each post, and you can set the maximum width and alignment. To learn more about dynamic content configurations, see Dynamic Content.

Managing Messages images in the Resources module

The Resources module is where you will manage any images used in Messages. Make files available to anyone who would be sending messages without the need to grant access to Resources.

There are two ways folders can be used in Resources to assist you and your team with Messages: using the already existing Messages folder or creating a new folder in the main folder list. Here's how it works:

Method #1: Create folder in the already existing Messages folder

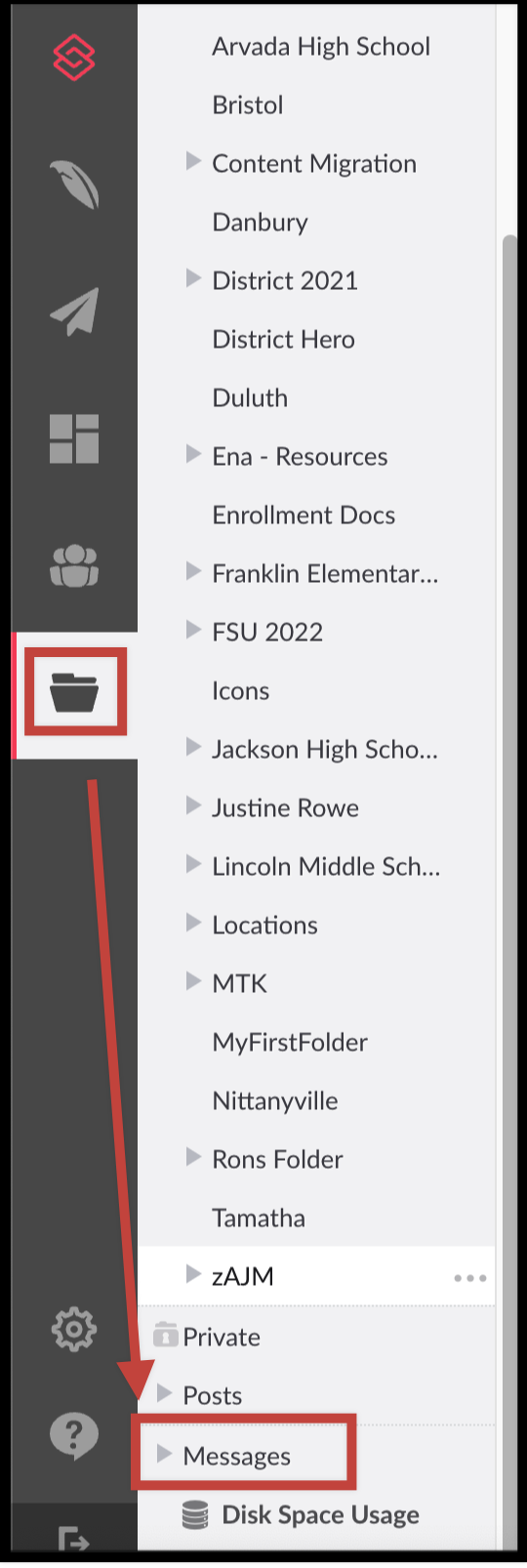

  • Site Admins find the Messages folder that was created for you at the bottom of the Folder list.

messages resource connection folders.png

  • Hover until 3-dot menu appears, click + Folder to create a folder.
  • Place files into this folder that will be available more broadly to anyone sending out messages without having to grant access to the Resources module.

Method #2: Create folder in the Resources folder list

Sit admins can also create a separate folder in the upper / main area of Resources folders that serves as a more individualized and dedicated area for a person or group of people
